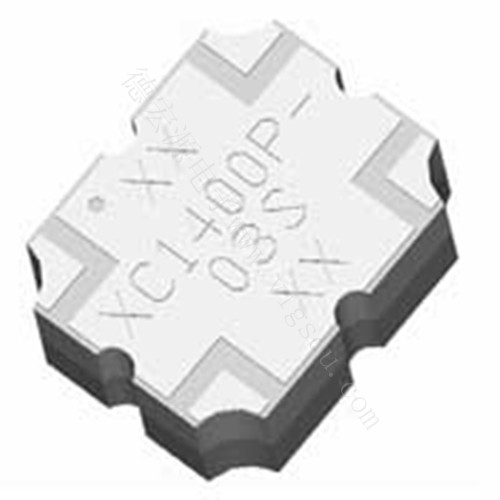

Anaren射频复式耦合器XC1400P-03S
The XC1400P-03S is a low profile, high performance 3dB hybrid coupler in a new easy to use, manufacturing friendly surface mount package. It is designed for GPS band applications. The XC1400P-03S is designed particularly for balanced power and low noise amplifiers, plus signal distribution and other applications where low insertion loss and tight amplitude and phase balance is required. It can be used in high power applications up to 40 Watts. Parts have been subjected to rigorous qualification testing and they are manufactured using materials with coefficients of thermal expansion (CTE) compatible with common substrates such as FR4, G-10, RF-35, and RO4350. Produced with 6 of 6 RoHS compliant tin immersion.
| 关键属性 |
价值 |
| Type |
|
| Power |
|
| Dimensions |
|
| Isolation |
|
| Insertion Loss |
|
| VSWR (~:1) |
|
| Phase |
|
| Frequency Range : Minimum Frequency |
|
| Frequency Range : Maximum Frequency | |
