M/A-COM平衡—不平衡转换器MABACT0039TR

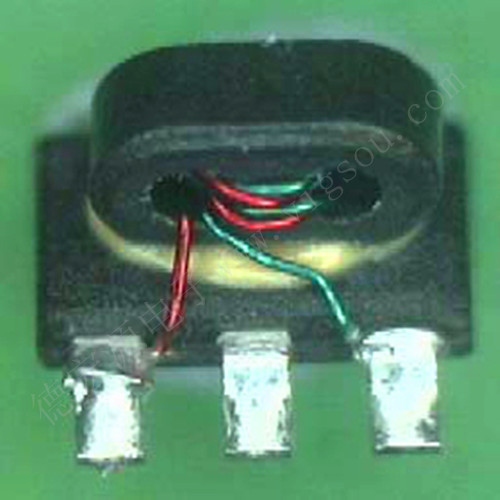

M/A-COM's MABACT0039 is a low cost SMT 1:1 Transmission Line Transformer in a low cost, surface mount package. Ideally suited for high volume CATV/Broadband applications Suitable for use in 50 Ohm and 75 Ohm systems.
| 关键属性 |
价值 |
| Frequency Range : Minimum Frequency |
5 MHz |
| Frequency Range : Maximum Frequency |
3000 MHz |
| Impedance Ratio (bal:unbal) |
1:1 |
| Unbalanced (Primary) Port Impedance |
50 or 75 Ω |
| Insertion Loss |
1.5 dB |
| Return Loss |
30 dB |
| Power |
0.25 W |
| Dimensions |
4.27mm x 5.33mm |
| Package Type |
SM-138 | |
