SUMITOMO射频功率晶体管FLL120MK
FEATURES
• High Output Power: P1dB = 40.0dBm (Typ.)
• High Gain: G1dB = 10.0dB (Typ.)
• High PAE: ηadd = 40% (Typ.)
• Proven Reliability
• Hermetically Sealed Package
DESCRIPTION

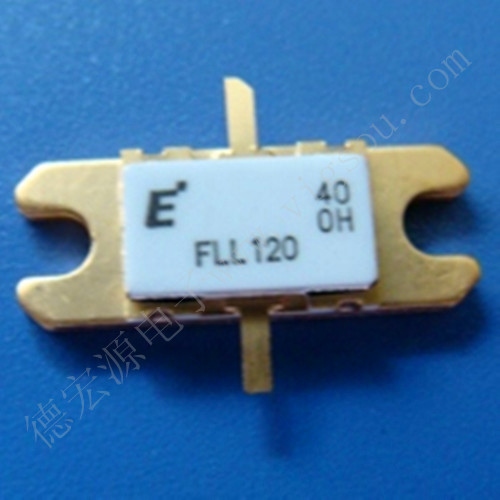

The FLL120MK is a Power GaAs FET that is specifically designed to
provide high power at L-Band frequencies with gain, linearity and
efficiency superior to that of silicon devices. The performance in
multitone environments for Class AB operation make them ideally
suited for base station applications.
Eudyna stringent Quality Assurance Program assures the highest
reliability and consistent performance. |
