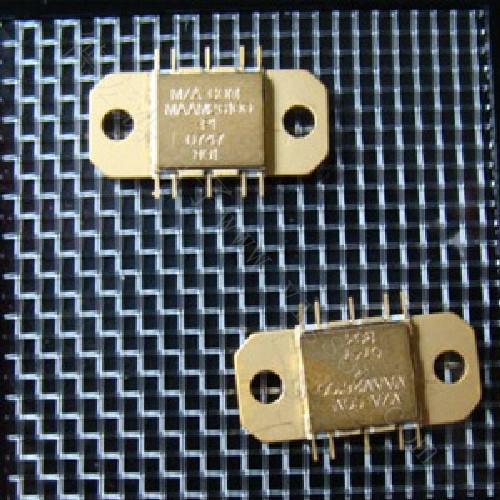

M/A-COM射频和微波驱动放大器MAAM26100-P1
MAAM26100-P1 is a GaAs MMIC two stage high efficiency power amplifier in a lead-free high performance bolt down ceramic package. The MAAM26100-P1 is a fully monolithic design which eliminates the need for external circuitry in 50-ohm systems. The MAAM26100-P1 is ideally suited for driver amplifiers and transmitter outputs in UMTS applications, test equipment, electronic warfare jammers, missile subsystems and phased array radars. M/A-COM's MAAM26100-P1 is fabricated using a mature 0.5-micron gate length GaAs process. The process features full passivation for increased performance reliability.
| 关键属性 |
价值 |
| Technology |
MMIC |
| Frequency Range : Minimum Frequency |
2000 MHz |
| Frequency Range : Maximum Frequency |
6000 MHz |
| Gain |
20 dB |
| Gain Flatness |
|
| Noise Figure |
|
| P1dB |
28 dBm |
| Output IP3 |
|
| Package Type |
Ceramic |
| 其他属性 |
价值 |
| Supply Voltage |
8 VDC | |
