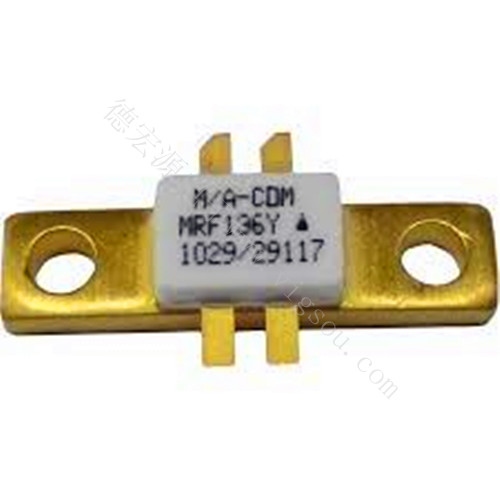

MRF136Y

M/A-COM射频功率晶体管MRF136Y

Designed for wideband large-signal amplifier and oscillator applications up to 400 MHz range, in either single ended or push-pull configuration.

关键属性	价值
Frequency Range : Minimum Frequency	2 MHz
Frequency Range : Maximum Frequency	400 MHz
P1dB
Gain	14 dB
Pout	30 W
Test signal	CW
Power Added Efficiency	54 %
Supply Voltage	28 VDC
Thermal Resistance	1.75 °C/W
Package Type	P-215
